2008-2011年丰田红杉SEOUOIA维修电路图线路图接线图资料下载

本资料提供了2008-2011年丰田红杉SEOUOIA维修电路图线路图接线图资料下载

适用于2008-2011年之间生产的丰田红杉车型（资料为英文版）

PDF格式，支持手机、平板、电脑阅读

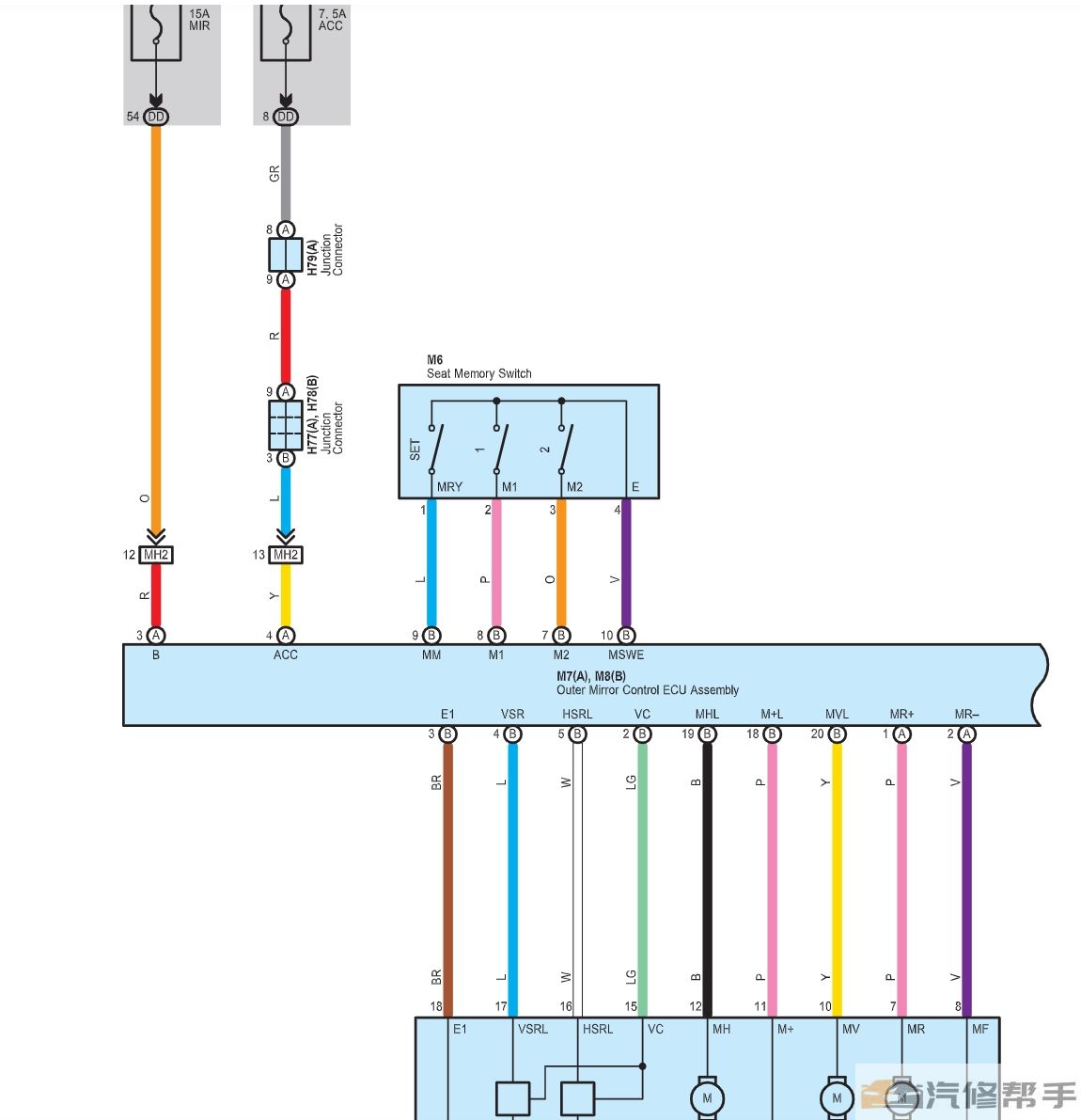

含全车各系统电路图

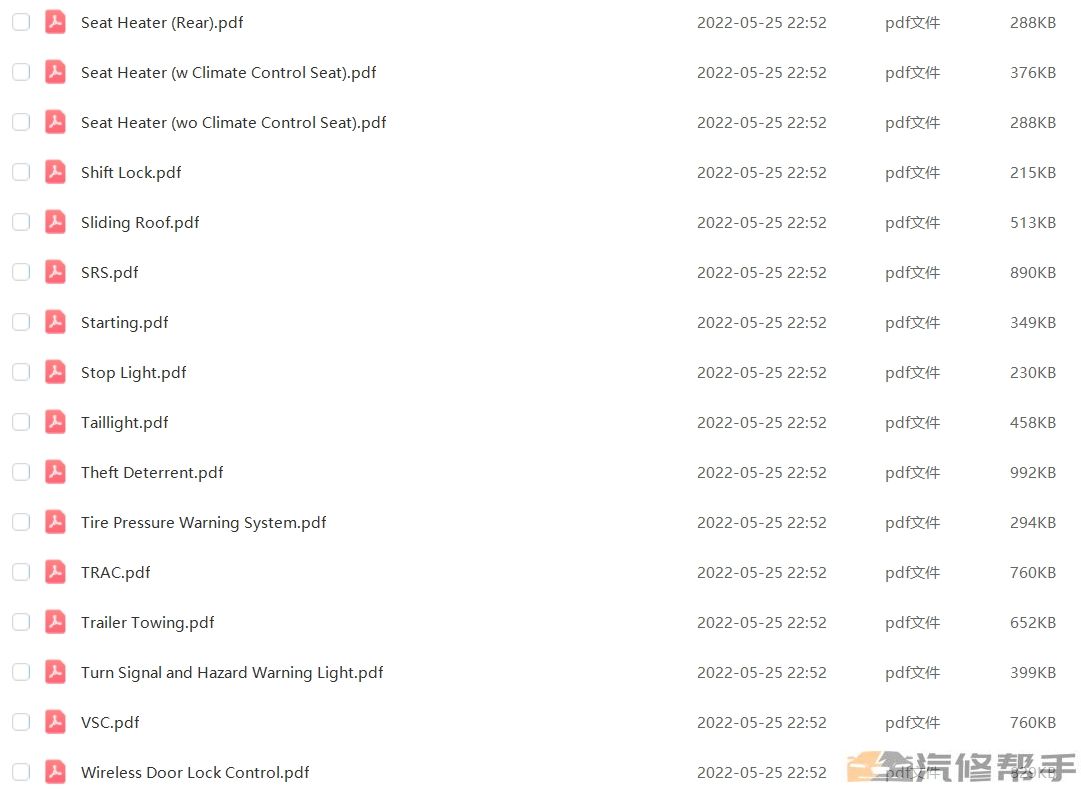

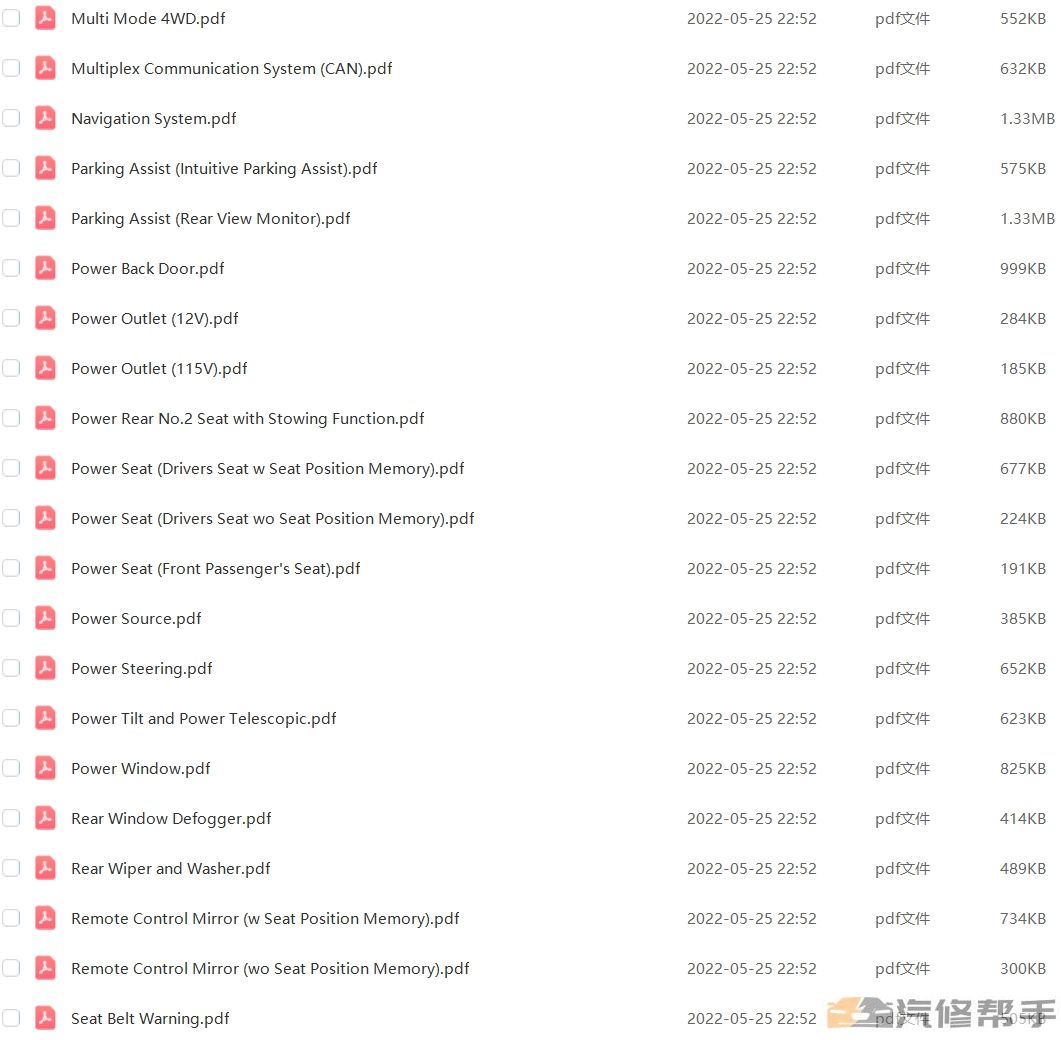

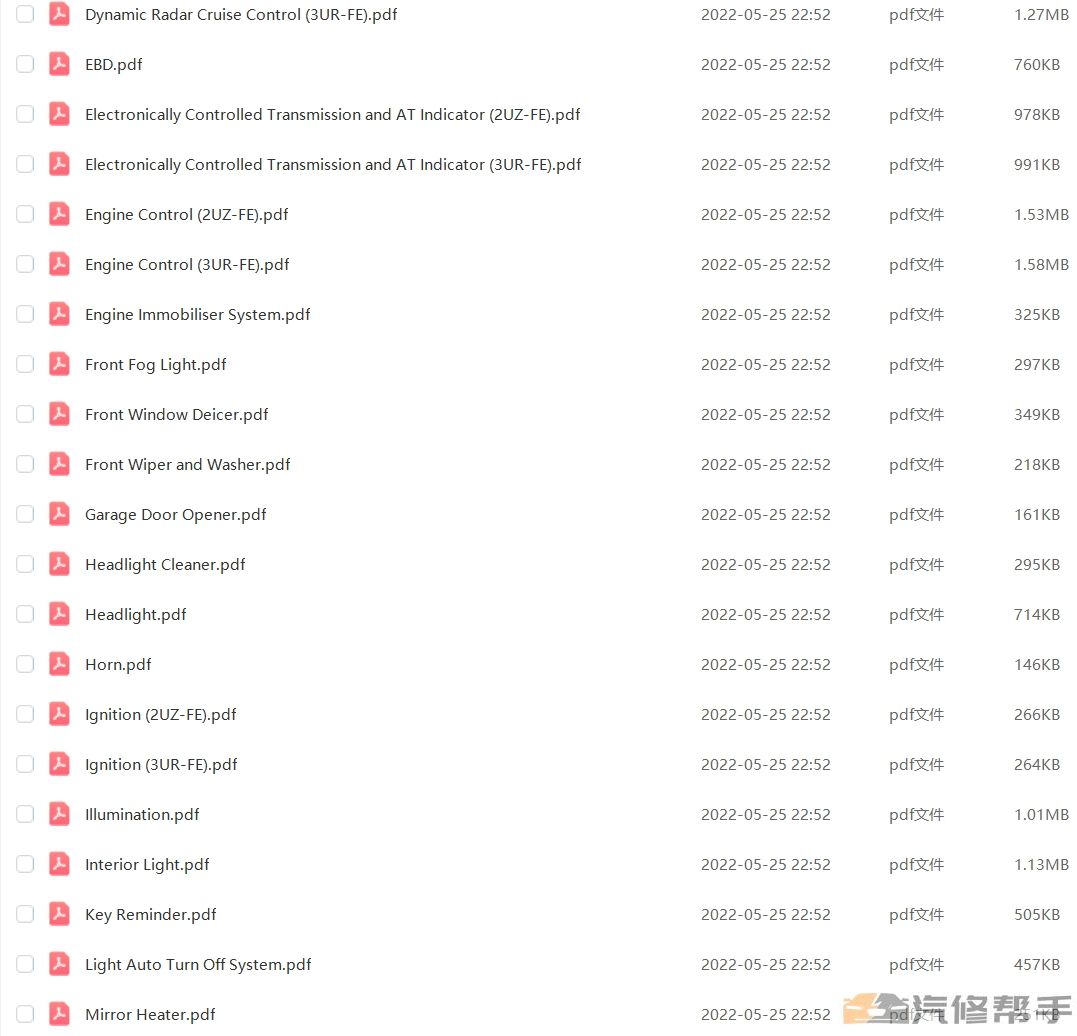

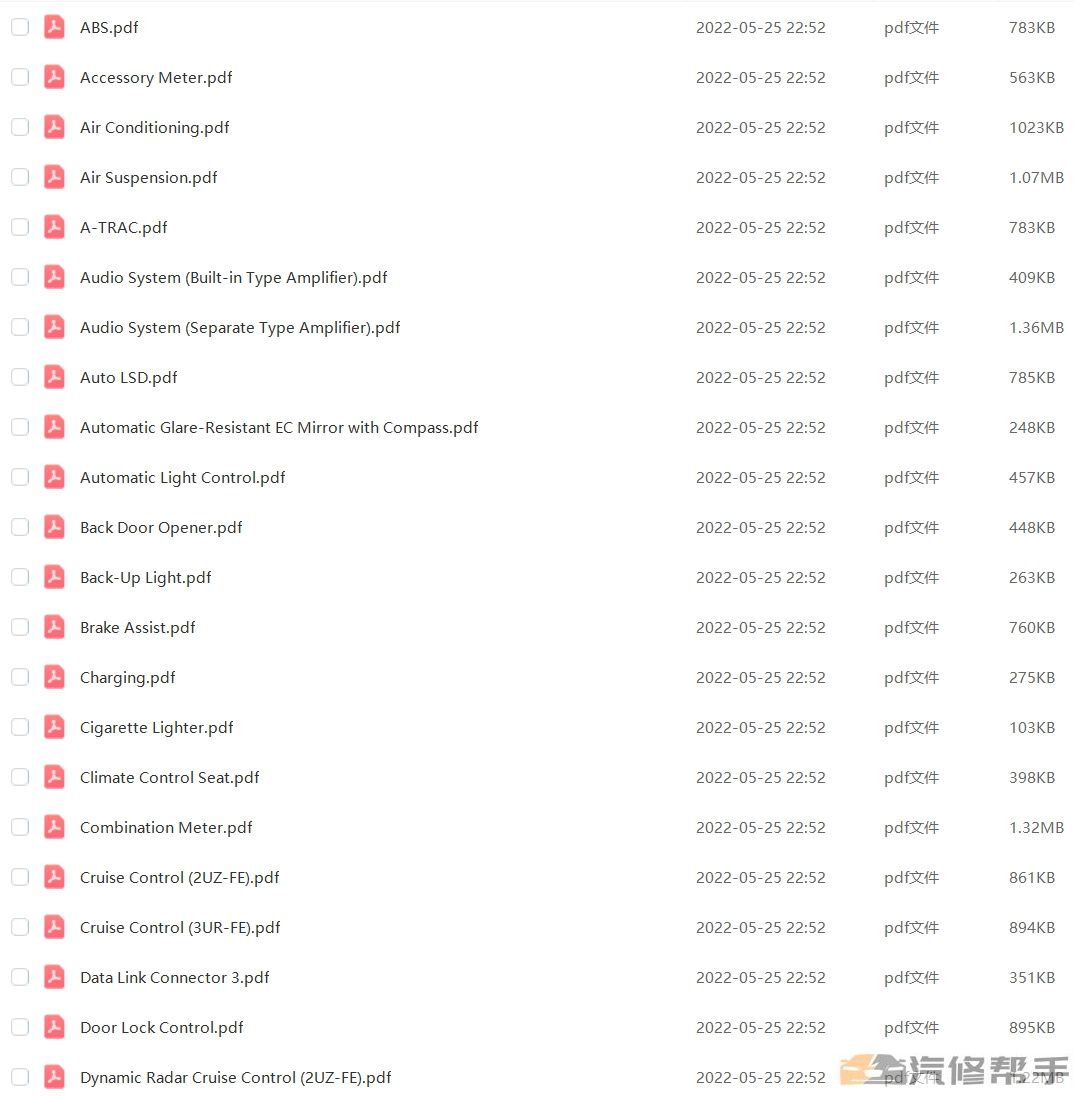

目录：ABS、Accessory Meter、Air Conditioning、Air Suspension、A-TRAC、Audio System (Built-in Type Amplifier)、Audio System (Separate Type Amplifier)、Auto LSD、Automatic Glare-Resistant EC Mirror with Compass、Automatic Light Control、Back Door Opener、Back-Up Light、Brake Assist、Charging、Cigarette Lighter、Climate Control Seat、Combination Meter、Cruise Control (2UZ-FE)、Cruise Control (3UR-FE)、Data Link Connector 3、Door Lock Control、Dynamic Radar Cruise Control (2UZ-FE)、Dynamic Radar Cruise Control (3UR-FE)、EBD、Electronically Controlled Transmission and AT Indicator (2UZ-FE)、Electronically Controlled Transmission and AT Indicator (3UR-FE)、Engine Control (2UZ-FE)、Engine Control (3UR-FE)、Engine Immobiliser System、Front Fog Light、Front Window Deicer、Front Wiper and Washer、Garage Door Opener、Headlight Cleaner、Headlight、Horn、Ignition (2UZ-FE)、Ignition (3UR-FE)、Illumination、Interior Light、Key Reminder、Light Auto Turn Off System、Mirror Heater、Multi Mode 4WD、Multiplex Communication System (CAN)、Navigation System、Parking Assist (Intuitive Parking Assist)、Parking Assist (Rear View Monitor)、Power Back Door、Power Outlet (12V)、Power Outlet (115V)、Power Rear No.2 Seat with Stowing Function、Power Seat (Drivers Seat w Seat Position Memory)、Power Seat (Drivers Seat wo Seat Position Memory)、Power Seat (Front Passenger's Seat)、Power Source、Power Steering、Power Tilt and Power Telescopic、Power Window、Rear Window Defogger、Rear Wiper and Washer、Remote Control Mirror (w Seat Position Memory)、Remote Control Mirror (wo Seat Position Memory)、Seat Belt Warning、Seat Heater (Rear)、Seat Heater (w Climate Control Seat)、Seat Heater (wo Climate Control Seat)、Shift Lock、Sliding Roof、SRS、Starting、Stop Light、Taillight、Theft Deterrent、Tire Pressure Warning System、TRAC、Trailer Towing、Turn Signal and Hazard Warning Light、VSC、Wireless Door Lock Control
